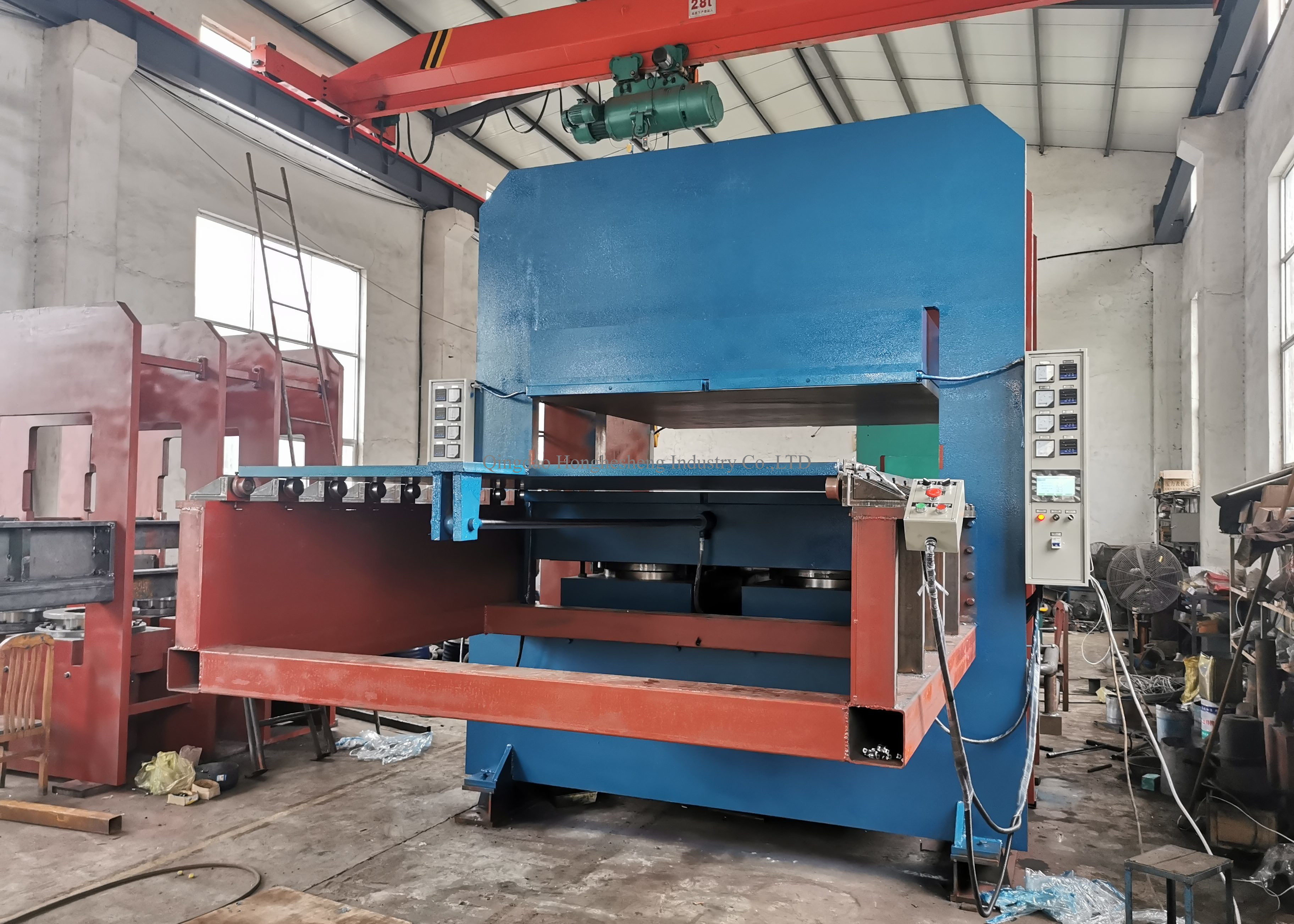

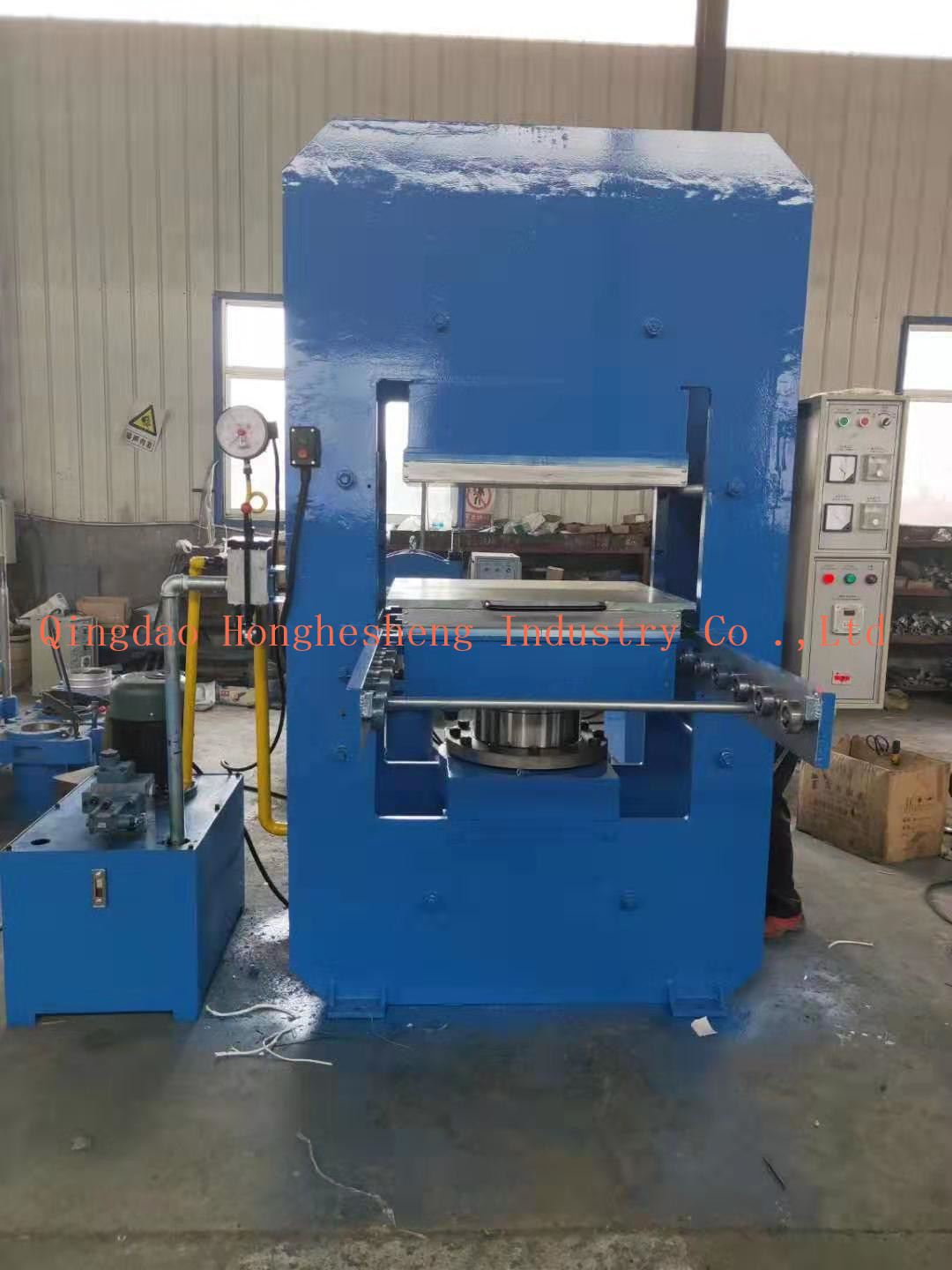

New design frame type vulcanizing press for curing rubber product with high quality in factory price

Brand Name : HHS

Model Number : XLB800-2200

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD 50000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/Year

Delivery Time : 15-30 work days

Packaging Details : Wooden cases / Containers, etc

Type : Vulcanizer

Colour : all colour

Voltage : customized

Power(W) : 11KW*2

Temperature : max 300 degree

Working Layers : 1-4layers

Plates : 300-2100mm

Hot Plates Material : Q-235 material.

Heating : electricity , steam heating , conduction oil heating .

Weight : 30000 kg

Contact Now

parameters

Model	Total Pressure(MN)	Daylight(mm)	Working Layer	Piston Stroke(mm)	Motor Power(KW)	Over Diameter (LWH) (mm)
XLB-6006002	1.00	125	2	250	2.2	1880× 820 × 1680
XLB-7508504	1.60	125	4	500	3	1730× 930 × 2460
XLB-9009002	2.50	200	2	400	4	2345× 960 × 1385
XLB-120012001	3.15	300	1	300	4	2800× 1300 × 2300
XLB-130020001	5.60	400	1	400	8	2000× 1860 × 2500
XLB-150015001	8.00	800	1	800	16.5	2200× 2200 × 4300
XLB-200020001	20.00	400	1	400	11	3600× 3000 × 3300

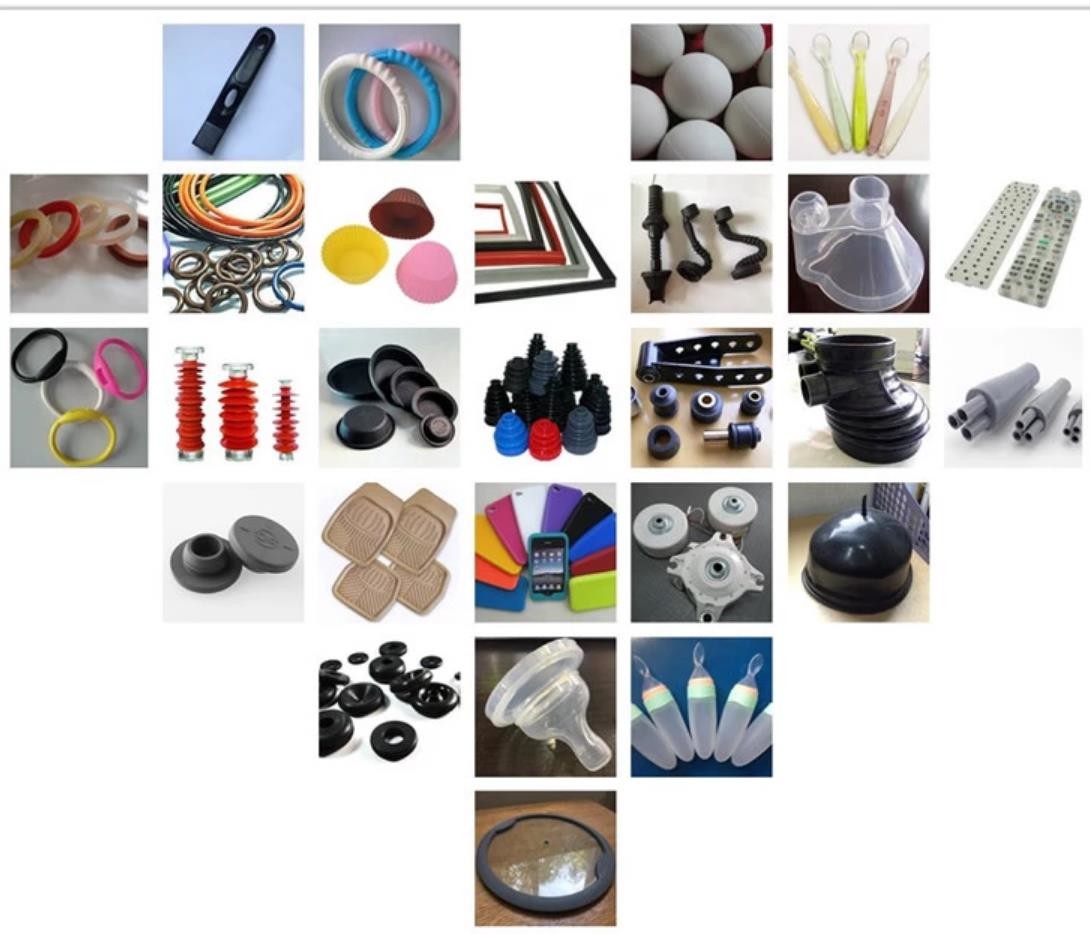

Rubber vulcanizer is used for vulcanizing all kinds of rubber and plastic mould products, and non-mould products. Being frame type, the machine is different from the column type , it is allowed to install larger diameter hydraulic cylinder, reducing the quantity of cylinders, with simple structure, and little maintaince wok. The frame can bear more stress and it has cheap price, nice surface, easy to operate.

Frame vulcanizing pree lightspots display:

Electrical control system:

Complete the perfect control system (including wire and cable and safety protection devices, etc.),Use automatic time relay,can achieve Automatic close mold,exhaust,stuffy,Vulcanization time, supplement pressure,open mold etc working process, also the automatic control and hand control can be switched easily.

New design frame type vulcanizing press for curing rubber product with high quality in factory price

New design frame type vulcanizing press for curing rubber product with high quality in factory price Images
